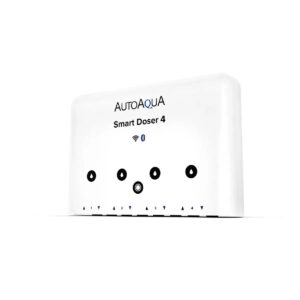

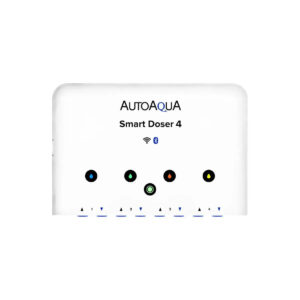

AutoAqua Smart Doser 4 Dosing Pump

AutoAqua Smart Doser 4 Dosing Pump

• Ultra-Thin Body That Mounts Almost Anywhere
• Smart Dosing Control Through the aquaLine App
• Dual WiFi + Bluetooth for Fast Setup
• Built-In Smart Safeguards & Other Helpful Extras

Smart Doser 4 is built for aquarists who want multiple dosing channels in one clean, compact device. Four independent dosing heads give you the flexibility to automate your major supplements, trace elements, or other additives from a single, ultra slim unit. Through the aquaLine app, you can easily schedule daily doses with built-in safety features that help maintain stable water chemistry.

With four pumps in one body, this is one of the simplest ways to bring modern dosing control to any aquarium.

Easy Scheduling & Device Grouping

Set up dosing the way that makes sense for your aquarium. Automatic Mode lets you enter the total daily volume and the app will distribute it evenly throughout your chosen time window. Manual Mode is available for one-off adjustments or quick corrections.

• Automatic and Manual modes
• 3 Daily Schedules: Daytime, Nighttime, or 24-Hour
• Daily Programs Without Overlap or Complex Math

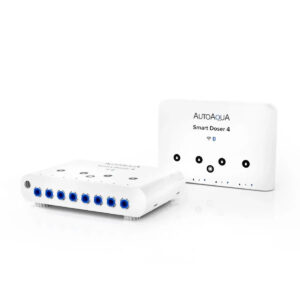

Group Multiple Devices

Running more than one supplement? Smart Doser 4 can work with up to 8 pumps at the same time through the AWS Cloud system. The app will coordinate all pumps so nothing overlaps and every dose stays on schedule.

Smart Safeguards and Helpful Extras

Power Outage & Restoration

Your settings are saved even after a power outage thanks to memory allocation. No battery necessary.

Patented Empty Monitor

A built-in optical sensor detects when your supplement bottle is empty and sends an instant alert through the app. This helps prevent chemistry swings from missed doses.

Peace of Mind

Receive instant notifications about any problems monitored by aquaLine.

Push Connect Fittings

The Smart Doser utilizes 1/4″ push connect fittings for an easy-to-use, yet secure and leak-free connection.

Feed Mode

Stop all dosing during feeding or maintenance.

Calibration

Calibrate your Smart Doser 4 for the most accurate dosing.

WiFi & Bluetooth Dual Connectivity

Dual connectivity provides fast setup and ensures that you stay connected wherever you are.

Specifications

• Power:
  • Input: 100-240 VAC 50-60 Hz
  • Output: 12 VDC / 1 A
  • Cable Length: 6 feet (180 cm)
• Slim Gear Peristaltic Pump:
  • Power: 2 W @ 12 VDC
  • Suction Head: 20 feet (610 cm)
  • Max. Flow: 21 ml/min
  • Accuracy: +/- 2%
  • Dosing volume: 1-999 ml
  • Minimum dosage: 1 ml
• 1/4-inch Flexible Tubing:
  • Length: 9.8 feet (300 cm)
  • Size: ID 5/32 inch (4 mm), OD 1/4 inch (6.4 mm)
• Dimensions (L x H x W): 6.9 inch x 4.7 inch x 1.4 inch (177 mm x 120 mm x 35 mm)

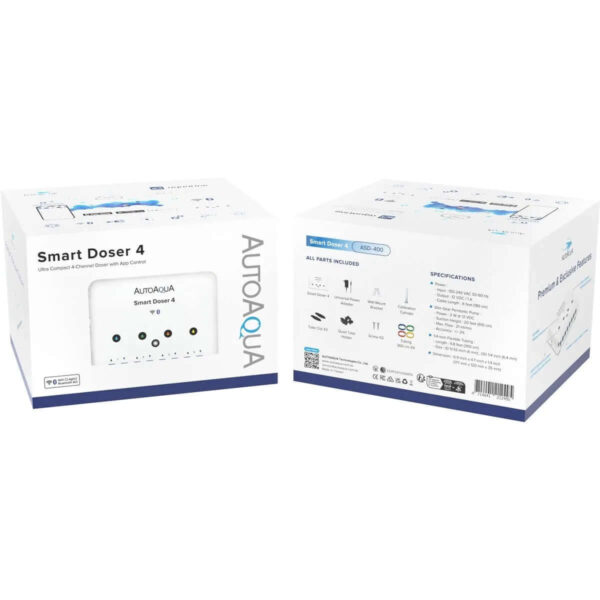

What’s Included?

Smart Doser 4
Universal Power Adapter
Quad Tube Holder
(2x) Tube Clip
Mounting Bracket
(2x) Mounting Screw
Calibration Cylinder
Blue Tubing (approx. 9.8′)
Green Tubing (approx. 9.8′)
Orange Tubing (approx. 9.8′)
Yellow Tubing (approx. 9.8′)
