FujiMAC Air Pumps

FujiMAC Air Pumps

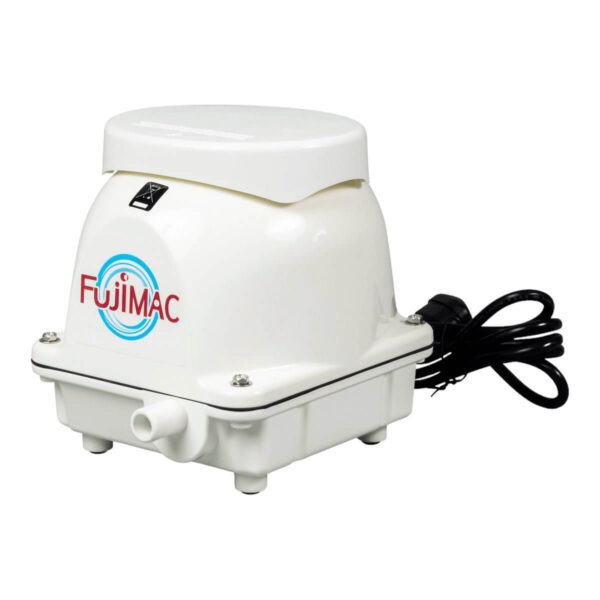

The durable, efficient, long-lasting air pump – made in Japan
FujiMAC Air Pumps are Better – FujiMAC air pumps are built to last!

The most quiet and energy-efficient diaphragm air pump is also the most rugged and longest lasting. And when it does need maintenance, 15 minutes with a few simple tools will have your pump ready for years of more reliable service.

• Compact – high-quality Japanese internal components, including a small powerful rare earth magnet, means FujiMAC is smaller than competing pumps
• Oilless – a floating rare earth magnet and two proprietary synthetic diaphragms are the only moving parts, which means no pistons, bearings, or other wear items.
• Built-in safety switch – FujiMAC air pumps all feature a reliable electrical circuit breaker. The resettable switch will interrupt pump power in the event of a diaphragm failure to prevent internal damage.  This allows a simple and quick rebuild rather than a pump replacement.
• Easy maintenance – FujiMAC pumps can be rebuilt in approximately 15 minutes using two common hand tools.
• Stable air flow – FujiMAC performance does not degrade over time, ensuring reliable wastewater treatment. These pumps are also not subject to uneven air pulses, but instead, deliver smooth even airflow.

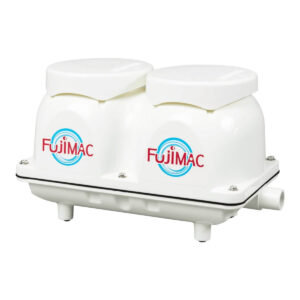

• Convenient sizes – FujiMAC pumps come in two physical sizes, and the pumps in the model range share many internal parts, which makes stocking spares an easy task. The FujiMAC model designation indicates the pump’s air production in liters per minute.

Made in Japan
FujiMAC’s 30-year track record of producing the world’s best diaphragm air pump has been achieved through stringent quality control.  FujiMAC is the only wastewater diaphragm air pump available that is MADE IN JAPAN. 100 percent of design, production, and testing is performed in Japan.

Specifications:

FUJIMAC40 R
Airflow – 40L/min

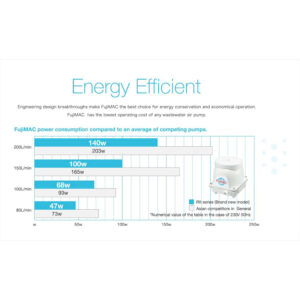

Power consumption – 35W
Pressure – 12kPa
Rated voltage – 230-240V
Outlet – 13mm(external dia. 18mm)

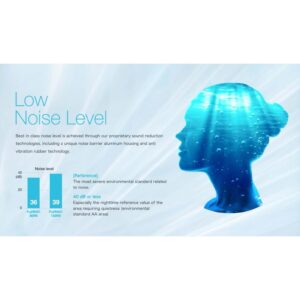

Noise level – 35dB
Weight – 5.0kg

FUJIMAC60 R
Airflow – 60L/min
Power consumption – 35W
Pressure – 15kPa
Rated voltage – 230-240V
Outlet – 13mm(external dia. 18mm)
Noise level – 35dB
Weight – 5.0kg

FUJIMAC80 R
Airflow – 80L/min
Power consumption – 47W
Pressure – 15kPa
Rated voltage – 230-240V
Outlet – 13mm(external dia. 18mm)
Noise level – 36dB
Weight – 5.0kg

FUJIMAC100 R
Airflow – 100L/min
Power consumption – 68W
Pressure – 18kPa
Rated voltage – 230-240V
Outlet – 13mm(external dia. 18mm)
Noise level – 39dB
Weight – 5.0kg

FUJIMAC120 R
Airflow – 120L/min
Power consumption – 86W
Pressure – 18kPa
Rated voltage – 230-240V
Outlet – 20mm(external dia. 26mm)
Noise level – 39dB
Weight – 5.0kg

FUJIMAC150 R
Airflow – 150L/min
Power consumption – 100W
Pressure – 20kPa
Rated voltage – 230-240V
Outlet – 20mm(external dia. 26mm)
Noise level – 41dB
Weight – 9.0kg

FUJIMAC200 R
Airflow – 200L/min
Power consumption – 140W
Pressure – 20kPa
Rated voltage – 230-240V
Outlet – 20mm(external dia. 26mm)
Noise level – 43dB
Weight – 9.0kg

FUJIMAC250 R
Airflow – 250L/min
Power consumption – 186W
Pressure – 20kPa
Rated voltage – 230-240V
Outlet – 20mm(external dia. 26mm)
Noise level – 48dB
Weight – 9.0kg

FUJIMAC300 R
Airflow – 300L/min
Power consumption – 250W
Pressure – 20kPa
Rated voltage – 230-240V
Outlet – 20mm(external dia. 26mm)
Noise level – 50dB
Weight – 9.0kg
